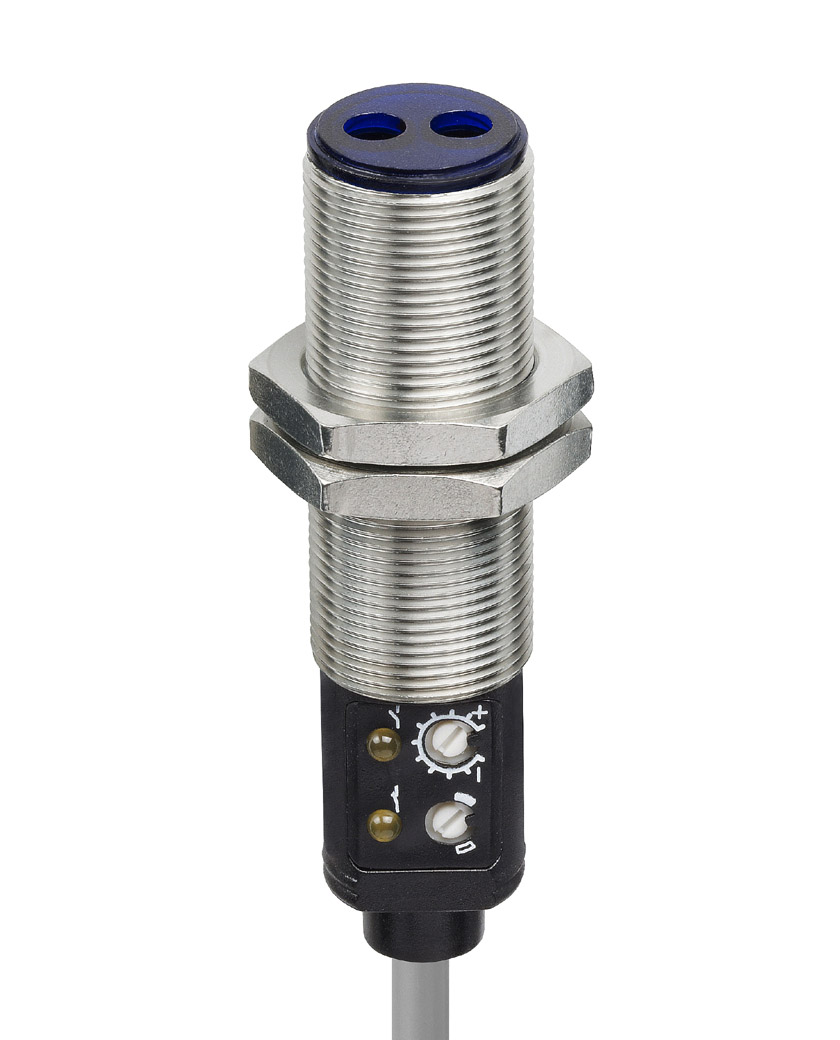

SM 8000

Product Data

Operation Mode	Fibre Sensor
Function	Both
Supply Voltage	20 - 250 V ac
Light Source	Infrared (880 nm)
Control Feature	Sensitivity pot. and light/dark switch
Sensing Range	Dependent of fibre optic
Output	SCR
Output Status	N.C./N.O.
Housing	M18 x 1
Housing Material	Stainless Steel
Connection	5 m cable

Technical Data

Supply Voltage	20 - 250 V ac
Voltage Ripple	15 %
Current Consumption	2 mA
Max. Output Load	200 mA
Max. Residual Voltage	8 V
Max. Operation Frequency	20 Hz
Response Time ton / toff	25 ms / 25 ms
Power On Indicator	Green LED
Output Indicator	Yellow LED
Hysteresis	Approx. 5 - 15 %
Opening Angle	+/- 4°
Housing Material, Front Lens	Polycarbonate
Housing Material, Sensor Housing	Stainless Steel (AISI 316 / 1.4401)
Cable	2 x 0,25 mm²
Cable Sleeve	PVC Ø 5,2 mm

Environmental Data

Vibration	10 - 55 Hz, 0,5 mm
Shock	30 g
Operation Temperature	-20 to +60 °C
Storage Temperature	-40 to +80 °C
Sealing Class	IP 67
Light Immunity 15˚	> 40 000 lux

Technical Drawings

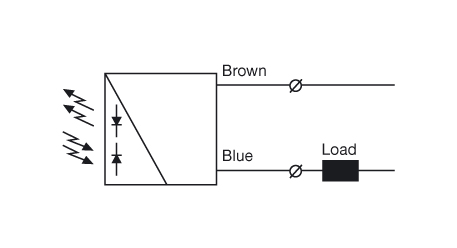

• Wiring Diagram

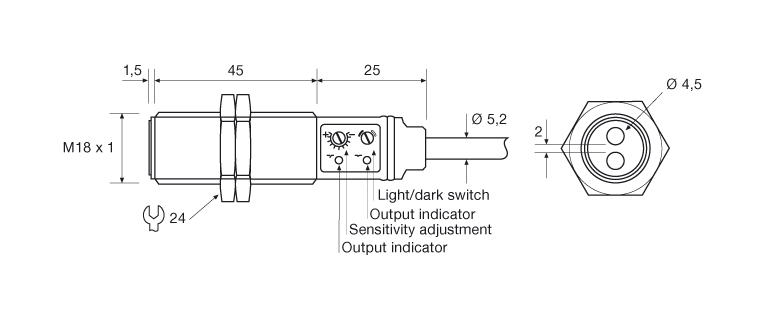

• Dimensions
